MS 38/17 A4‑70 Stainless Steel Hammer‑Head (T‑Bolt) Screw
Corrosion‑Resistant A4‑70 Stainless Steel Hammer‑Head T‑Bolt (MS 3817)
The MS 3817 hammer‑head (or T‑bolt) screw is engineered from A4‑70 stainless steel, a cold‑worked 316-grade alloy that offers excellent resistance to corrosion in harsh or marine environments. The T‑style head is designed for quick insertion into T‑slots and profile systems, making it ideal for modular framing, structural assemblies, and high‑precision construction.
A4-70 Stainless Steel

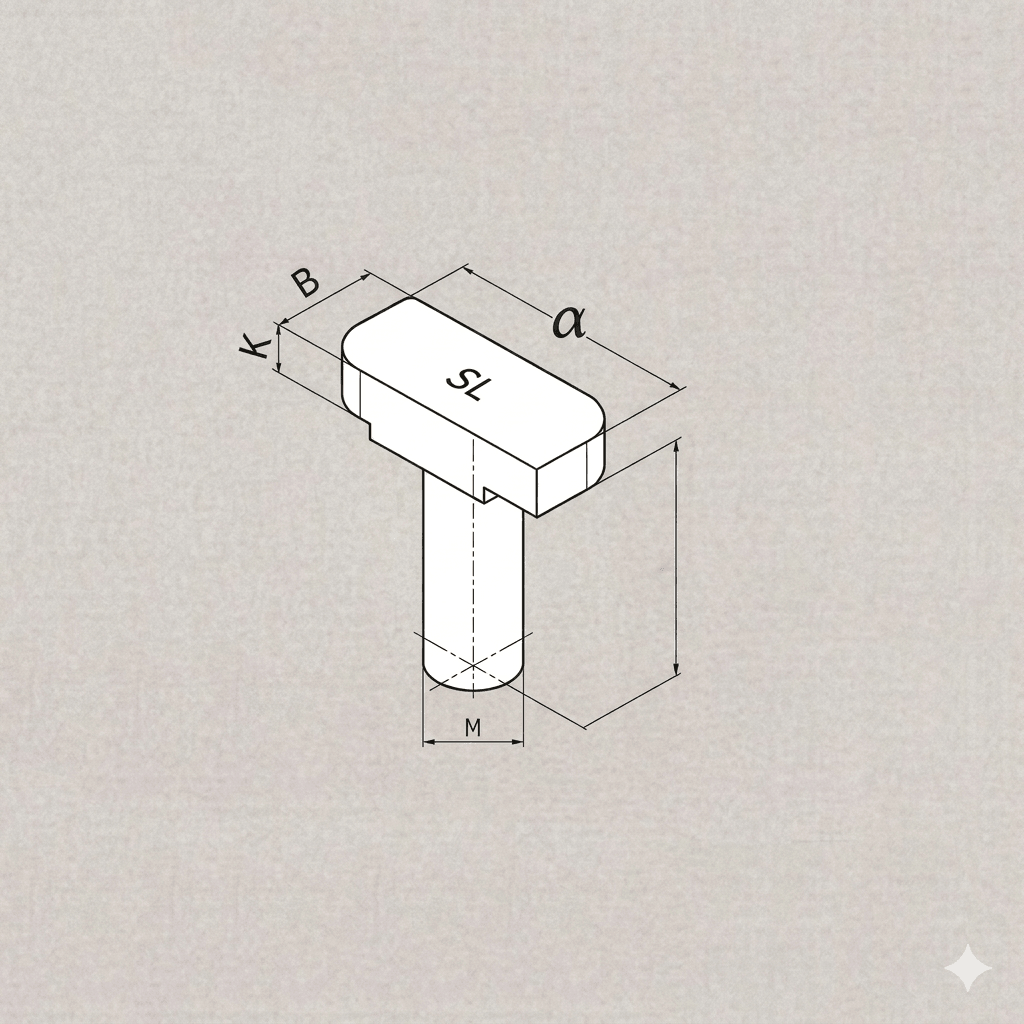

| Diameter | Length | K Value | B Value | |
|---|---|---|---|---|
| M8 | 20mm | 6 | 13.0 | 31.6 |
| M8 | 25mm | 6 | 13.0 | 31.6 |
| M8 | 30mm | 6 | 13.0 | 31.6 |
| M8 | 35mm | 6 | 13.0 | 31.6 |
| M10 | 20mm | 6 | 13.0 | 31.6 |
| M10 | 25mm | 6 | 13.0 | 31.6 |
| M10 | 30mm | 6 | 13.0 | 31.6 |
| M10 | 40mm | 6 | 13.0 | 31.6 |
| M10 | 50mm | 6 | 13.0 | 31.6 |
| M10 | 60mm | 6 | 13.0 | 31.6 |
| M10 | 70mm | 6 | 13.0 | 31.6 |
| M10 | 80mm | 6 | 13.0 | 31.6 |
| M10 | 100mm | 6 | 13.0 | 31.6 |
| M12 | 30mm | 7 | 13.0 | 31.0 |
| M12 | 40mm | 7 | 13.0 | 31.0 |
| M12 | 50mm | 7 | 13.0 | 31.0 |
| M12 | 60mm | 7 | 13.0 | 31.0 |
| M12 | 80mm | 7 | 13.0 | 31.0 |
| M12 | 100mm | 7 | 13.0 | 31.0 |
| M12 | 125mm | 7 | 13.0 | 31.0 |
| M12 | 150mm | 7 | 13.0 | 31.0 |
| M12 | 200mm | 7 | 13.0 | 31.0 |
| M16 | 30mm | 7 | 16.0 | 31.0 |
| M16 | 40mm | 7 | 16.0 | 31.0 |
| M16 | 50mm | 7 | 16.0 | 31.0 |
| M16 | 60mm | 7 | 16.0 | 31.0 |
| M16 | 80mm | 7 | 16.0 | 31.0 |
| M16 | 100mm | 7 | 16.0 | 31.0 |
| M16 | 125mm | 7 | 16.0 | 31.0 |
| M16 | 150mm | 7 | 16.0 | 31.0 |
| M16 | 200mm | 7 | 16.0 | 31.0 |
