MS 28/15 A2‑70 Stainless Steel Hammer‑Head (T‑Bolt) Screw
High‑Strength A2‑70 Stainless Steel Hammer‑Head T‑Bolt (MS 28/15)
The MS 28/15 hammer‑head screw is a T‑bolt designed for use with aluminium profiles and other T‑slot systems. Made from A2‑70 stainless steel, it delivers excellent corrosion resistance—and a high minimum tensile strength—making it suitable for assemblies requiring both durability and strength.
A2-70 Stainless Steel

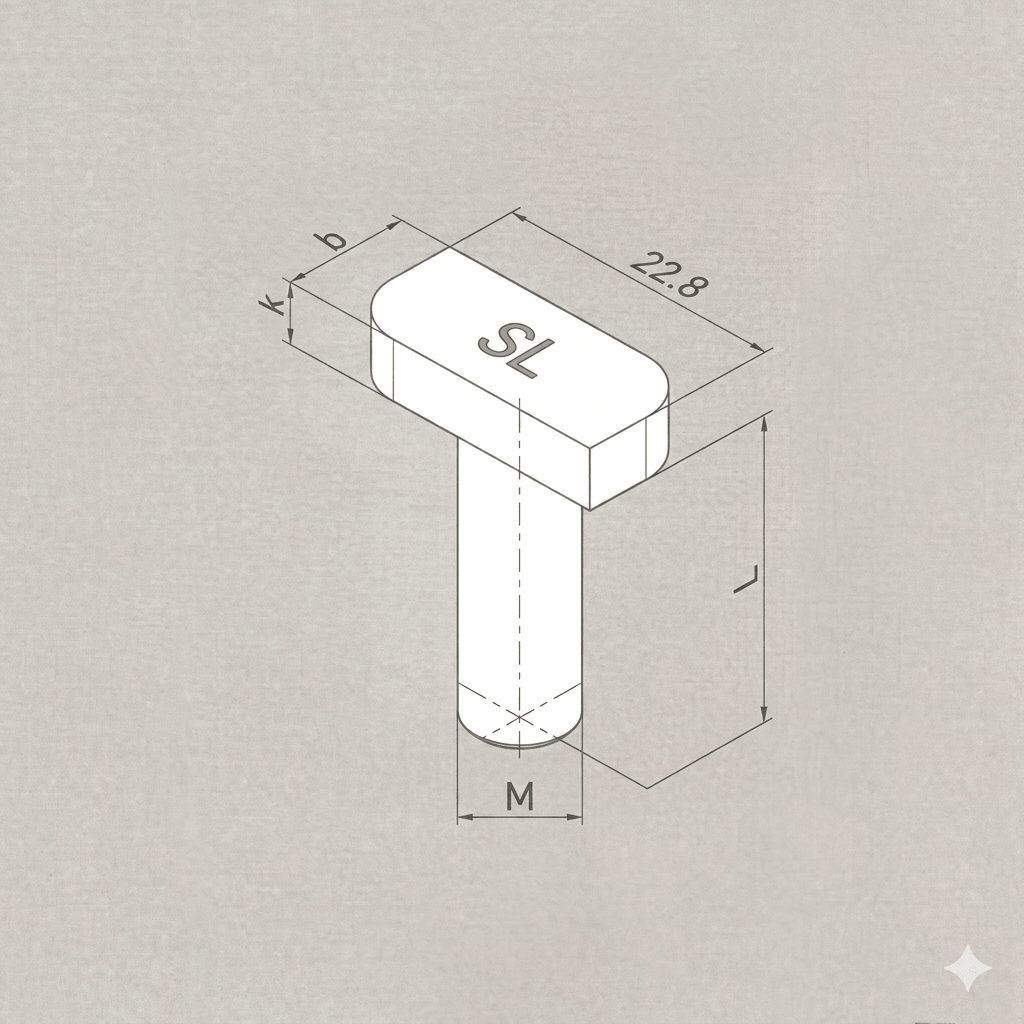

| Diameter | Length | K Value | B Value |
| M6 | 20mm | 4 | 10.1 |
| M6 | 50mm | 4 | 10.1 |
| M6 | 60mm | 4 | 10.1 |
| M6 | 65mm | 4 | 10.1 |
| M8 | 20mm | 4 | 10.1 |
| M8 | 25mm | 4 | 10.1 |
| M8 | 30mm | 4 | 10.1 |
| M8 | 35mm | 4 | 10.1 |
| M8 | 40mm | 4 | 10.1 |
| M8 | 45mm | 4 | 10.1 |
| M8 | 50mm | 4 | 10.1 |
| M8 | 53mm | 4 | 10.1 |
| M8 | 55mm | 4 | 10.1 |
| M8 | 60mm | 4 | 10.1 |
| M8 | 65mm | 4 | 10.1 |
| M8 | 70mm | 4 | 10.1 |
| M8 | 75mm | 4 | 10.1 |
| M8 | 80mm | 4 | 10.1 |
| M8 | 90mm | 4 | 10.1 |
| M10 | 20mm | 5 | 10.1 |
| M10 | 25mm | 5 | 10.1 |
| M10 | 30mm | 5 | 10.1 |
| M10 | 35mm | 5 | 10.1 |
| M10 | 40mm | 5 | 10.1 |
| M10 | 45mm | 5 | 10.1 |
| M10 | 50mm | 5 | 10.1 |
| M10 | 55mm | 5 | 10.1 |
| M10 | 60mm | 5 | 10.1 |
| M10 | 65mm | 5 | 10.1 |
| M10 | 70mm | 5 | 10.1 |
| M10 | 75mm | 5 | 10.1 |
| M10 | 80mm | 5 | 10.1 |
| M10 | 90mm | 5 | 10.1 |
| M12 | 40mm | 6 | 11.8 |
